• 170MHz Lowpass Filter

170MHz 7th order Chebychev Low Pass filter designed to to suit our Mitsubishi Module Kits, but can also be used with other Amplifiers. The Mitsubishi RA30H1317M1 modules require the use of a suitable Low Pass Filter to reduce the -35dBc second harmonic to a suitable level that complies with current ACMA and FCC rules of at least -50dBc. The Chebychev filter has been designed for low ripple,and uses low loss RF capacitors,high Q inductors to reduce RF losses. It will easily handle 100W carrier, and has at least -45db loss at the second harmonic of around 200MHz.

For more information see the EME183 FILTER KIT WEBPAGE

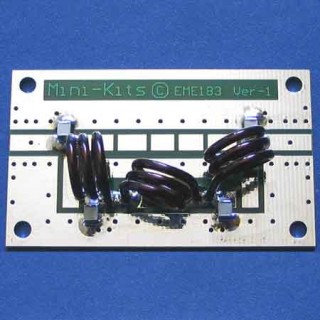

The Product image shows a fully constructed Kit product.  Please refer to the Options Tab for the descriptions of the various products available.

LPF7-170M KIT is the Basic Kit that includes the PC board, Instructions, and all on board components. Requires complete construction and soldering of some SMD components.

LPF7-170M PCB is the PC board and Kit construction notes only.

SMA33 Female SMA connector to suit 1.6mm PC boards only.

Kits Do Not include connectors, miscellaneous hardware, or enclosure.

Specifications
Low Pass Filter:
170MHz, 2M band 7th order Chebychev
Frequency Response:
Refer to the Test Data
2nd Harmonic Rejection:
-45dBc @ 200MHz
Insertion Loss:
< 0.2dB
Return Loss:
> 18dB
Input Power:
100 Watts Maximum
Board Size: 55mm L x 33mm W x 15mm H

170MHz Lowpass Filter

  • Brand: Mini-Kits
  • Product Code: LPF7-170M KIT
  • Quantity In Stock: 10
  • $19.95

  • Export: $18.14

Available Options

Accessories

Enter desired quantity before clicking Add to Cart button

SMA33 PCB Mount Wide 1.6mm

SMA33 PCB Mount Wide 1.6mm

$3.30 Export: $3.00

EME183 PC board

EME183 PC board

$5.50 Export: $5.00

  • Total:

  • Export Total:
